Stock Code:
SM303

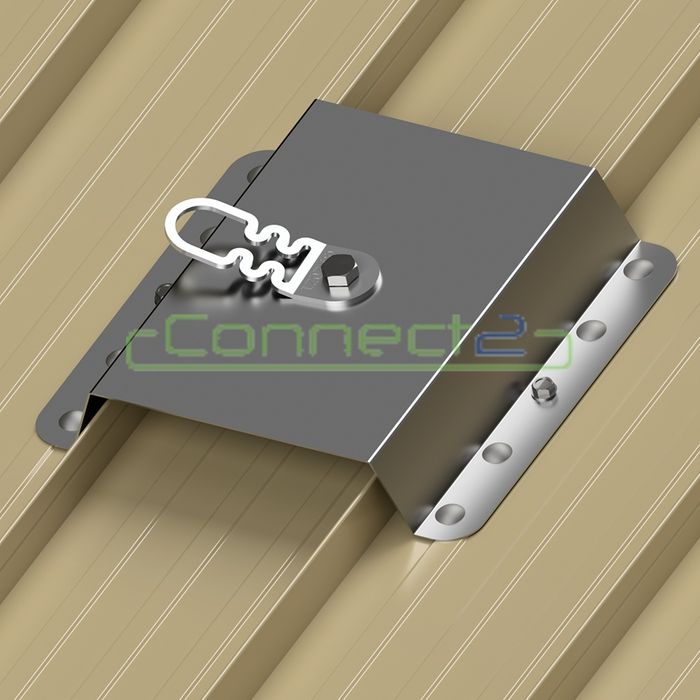

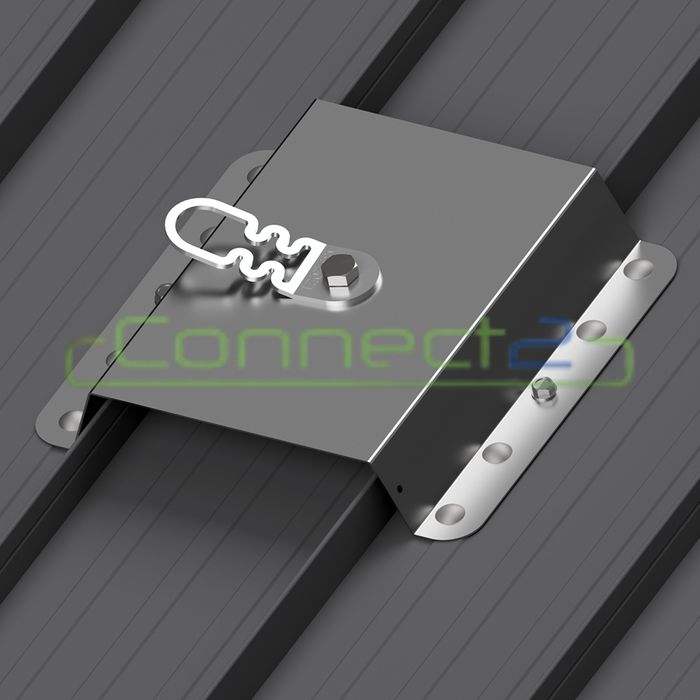

Connect2 Surface Mount Top Hat Anchor
Description
Elevate your safety standards with the SM303 Surface Mount Top Hat Anchor. As an integral part of the acclaimed Connect2 Series, this anchor is tailored for diverse applications, combining both resilience and optimum safety performance.
Product Details:
- Material:
- Base Plates: Stainless Steel
- Swivel Anchorage: Stainless Steel
- Dimensions:
- Length: 330.90mm
- Width: 300.00mm
- Height (Assembled): 87.110mm
- Weight (Assembled): 1.5730 kg
Key Features:
- Commitment to Safety: Adherence to manufacturer's installation guidelines is essential.
- Maximum Safe Load Capacity: 15kN
- Warranty: 5 years, dependent on appropriate installation and regular maintenance.
- Compliance: Consistently meets the Australian Standards AS/NZS1891.4.
Considerations:
- To derive the best from its features, it's crucial to utilize the anchor as recommended.
- Prior to installation, the insights of a structural engineering expert can prove invaluable.
- Keeping up with annual inspections and certifications is a must for sustaining top-notch safety standards.
